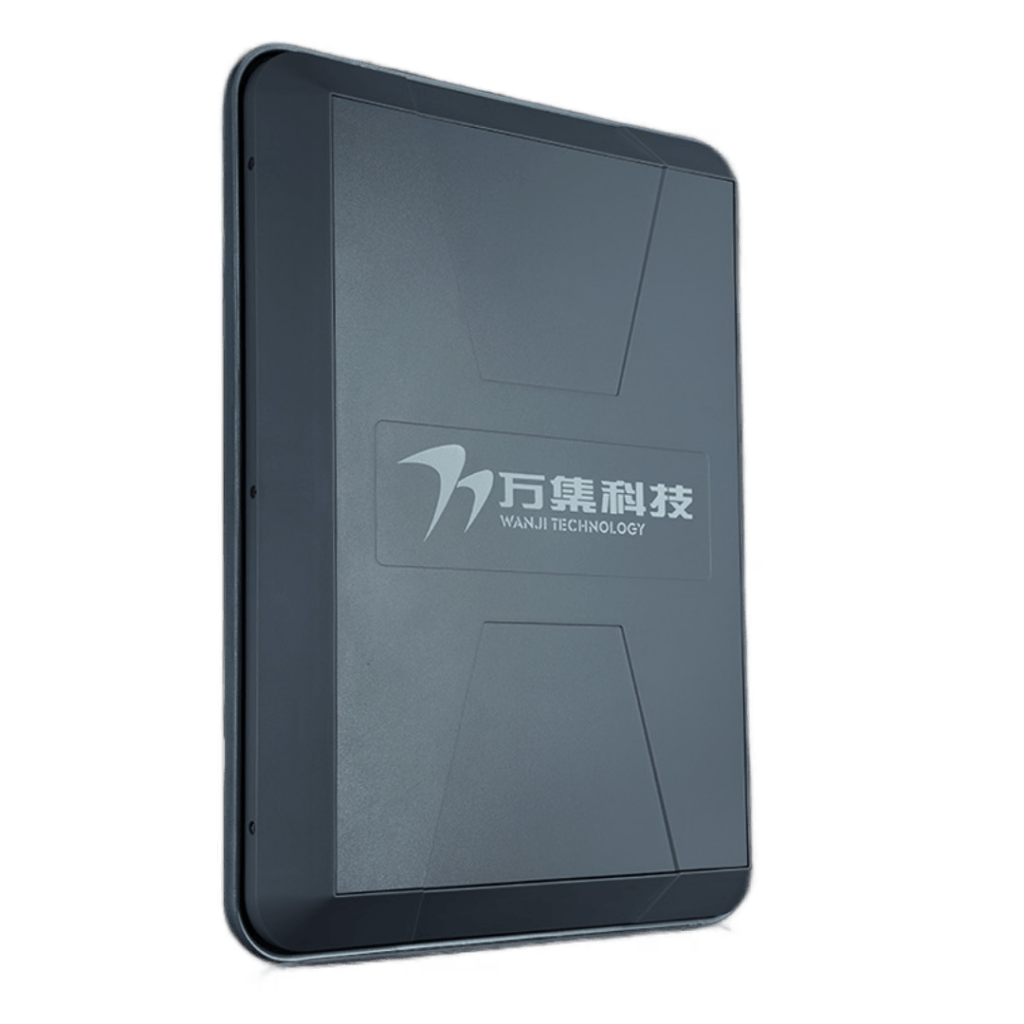

VanJee ETC RSU

WER13-01

VanJee ETC RSU WER13-01 roadside unit can completely eliminate problem of vehicle in adjacent channel interference due to VanJee combines ONE-POS two-dimensional positioning technology and ONE-CLOCK satellite synchronous timing technology into the RSU product.

01
Solving Two major problems
RSU can guide accurately ETC transactions and effectively distinguish adjacent channel OBU due to RSU combine High-precision two-dimensional positioning and satellite synchronous timing technology.
02
RSU with DBF High Resolution and High Precision Positioning
RSU has 3 major great features which are 1. Multi-target high-resolution, 2. high-precision simultaneous positioning, 3. strong positioning power. Positioning time: <100us.
03
Multiple RSUs can Improve Vehicle Traffic and Passing Efficiency significantly
Multiple RSUs could realizing the linkage through networking technology. RSUs would realize high-speed passing vehicles and greatly improve the speed and efficiency of vehicle passing by positioning OBUs in the certain area.

PRODUCT SPESIFICATION



Dimensions475mm×350mm×124mm
Communication Interface
RS232 / RS422、Gigabit Ethernet, Fast Ethernet, Fiber, RS232 / RS422USB2.0
Protection grade
IP67
Typical Trading Time
≤ 230ms
MTBF
＞70000h
Operating Temperature
-20℃～+70℃( Cold Area: -35℃～+70℃)
Anti-electromagnetic interference
Static electricity 8kV
Vibration
Comply withGB / T 2423.13
Shock
Comply with GB/T 2423.6 Test Eb and Guidelines
Lightning shock Resistence
Against lightning of 4kV10/200μs
