High-Performance ITS LiDAR

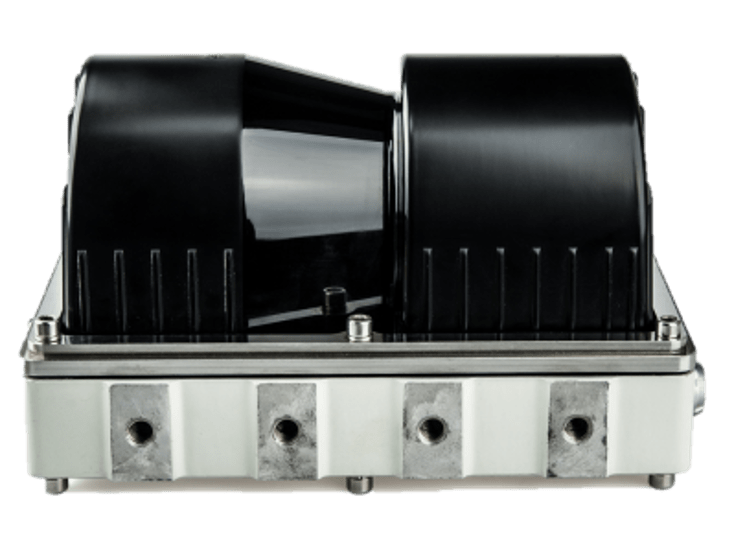

VanJee LiDAR WLR-711 is used as traffic scanner to provide valuable data for road authority worldwide including vehicle dimension measurement, vehicle classification and traffic flow data collection.
VanJee LiDAR WLR-711 uses LiDAR-time flight principle as well as combined with high-frequency LiDAR pulse generation technology. LiDAR has several FIVE great features which are
- Efficient and precise optical system
- Reliable timing circuit
- Multiple echo
- Multiple acquisition technology
- High-speed scanning system
ADVANTAGES VALUE
Working Area Up to 65 M
Comprehensively improve the safety detection distance
IP68 Protection Class
Can adapt to various harsh environment
Small Spot Divergence Angle
The scanning frequency can reach 100 HZ
Automatic Fault Detection
Can Automatically detect fault and report real-time

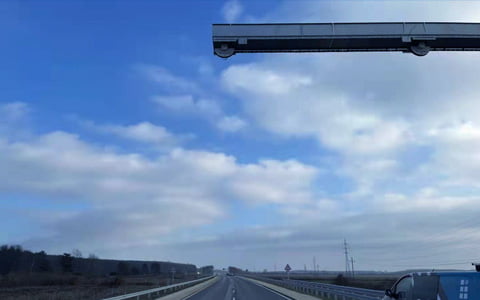

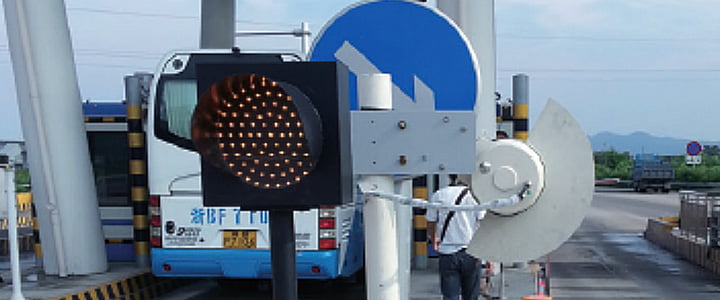

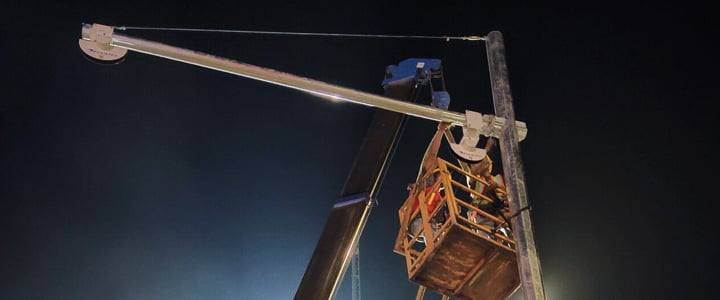

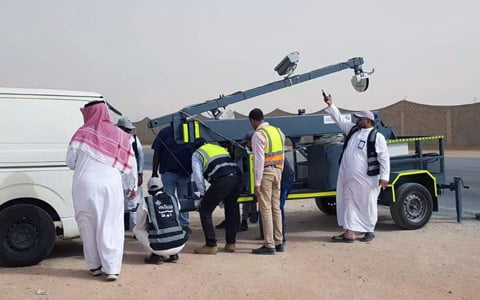

Implementations Scenarios
BASIC PARAMETERS
Dimensions/weight
120×130×221mm/3.4Kg
Scan Angle
Scan frequency
50Hz (711E)100Hz (711A)
Angle resolution
0.5°/0.25°
Ranging capability
0.5m to 30m @10% reflectance
Ranging error
≤3cm
Supply voltage
DC24V±4V
Communication interface
Ethernet
LiDAR Level
Class I Human Eye Safety
